Soundbar and Surround Setup in Costa Mesa
TV Mounting Square Costa Mesa covers mounting a soundbar and placing speakers for a wall-mounted TV in Costa Mesa homes — a bar bracket fixed into studs, an even gap beneath the screen, short cables and tidy speaker runs.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.

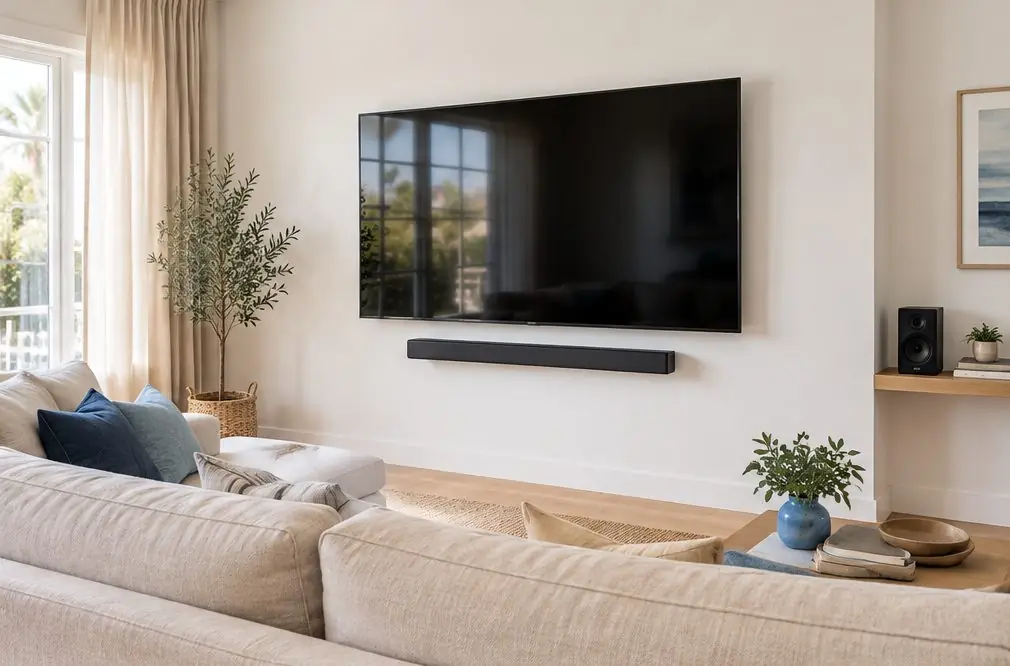

Illustration
The bar on its own bracket
A soundbar is not hung from the TV mount. It has its own bracket, screwed into the studs under the screen. A bar attached only to the TV's bracket can twist the plate over time.
Studs for the bar bracket
The bar sits below the TV, so the bracket needs wood at that height, and the studs there may sit in different places than behind the TV. The installer marks both rows, keeps an even gap beneath the screen and checks the bar against the picture's lower edge.
| Bar length | Typical bracket |
|---|---|
| Under 36 in | Two screws into one stud |
| 36–48 in | Two studs |
| Over 48 in | Two studs, with a level read |

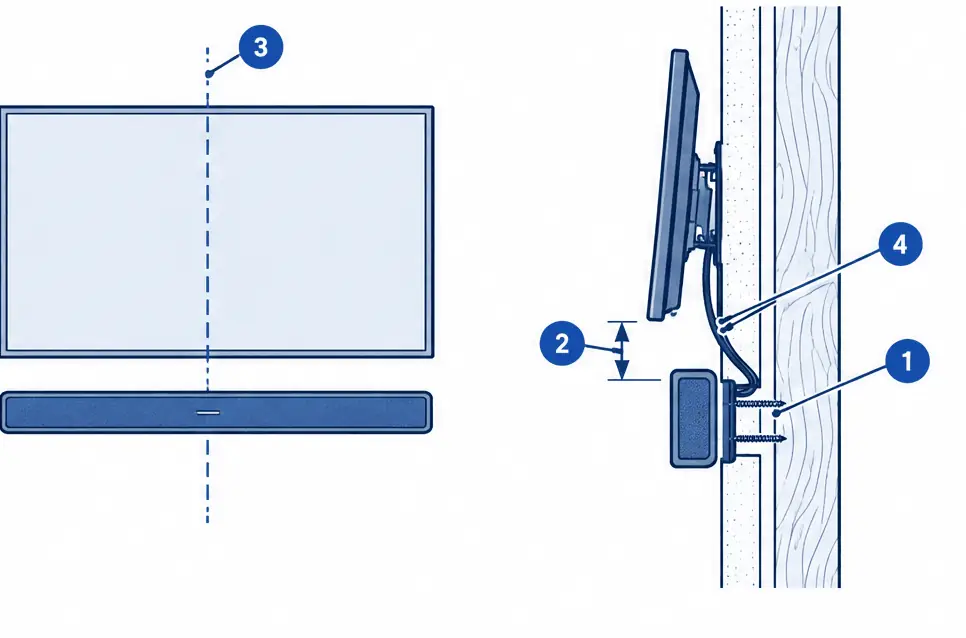

What the numbers show
- Own bracket The bar is not hung from the TV mount; a separate bracket takes its weight.
- Even gap A short, uniform gap below the screen keeps the bar from hiding the picture.
- Center line The bar and the TV share one vertical center line.
- Short cables The cables curve behind the bar to the TV, with no strain.
Speakers and cables
Rear speakers and a subwoofer are placed by the owner, with short cable runs along baseboards. HDMI ARC cables are kept short, and any run inside a wall uses rated cable.
Where bars do not fit
Under a pull-down fireplace mount or a ceiling-hung TV, a bar sits on a shelf or its own stand instead.
Soundbar and Surround Setup — common questions
How much does a soundbar mount add?
In 2026 Costa Mesa ranges, $55–$85 over the base range.
Can the bar hang from the TV?
It can on some mounts, but a separate bracket into the studs is steadier.
Availability & price range
Soundbar and Surround Setup: check availability and price range
Bookings aren't open yet — answer a few quick questions about the TV and the wall and get a typical Costa Mesa price range right here. Typical Costa Mesa prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
